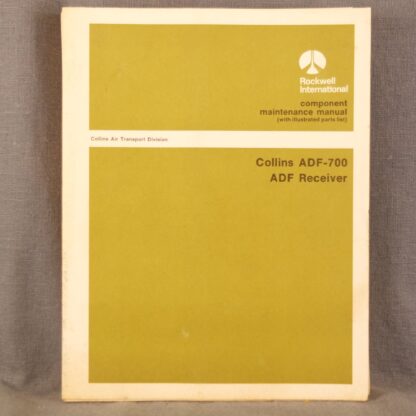

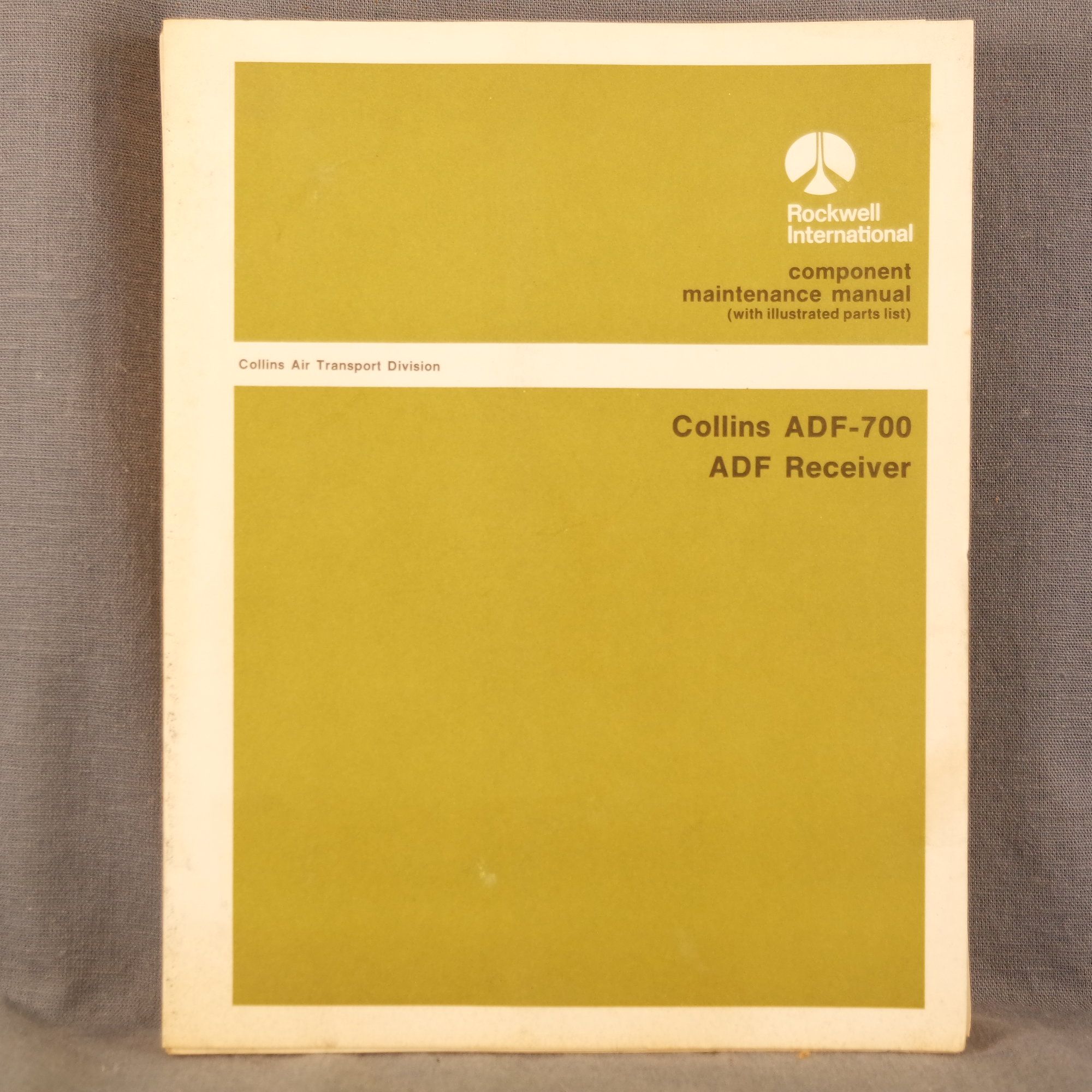

Collins ADF-700 ADF Receiver Component Maintenance Manual
part number: 523-0771207-311113, 3rd revision Sept 1985

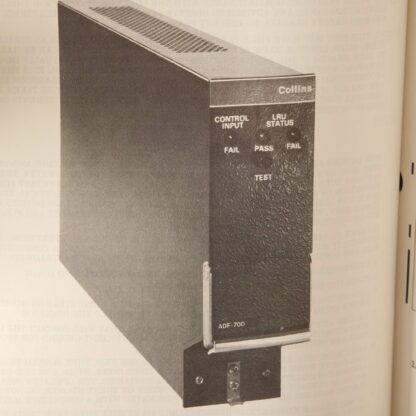

The ADF-700 Receiver is a solid-state digital airborne automatic direction finder receiver. Frequency is selected in the cockpit and data is sent to the ADF-700 to cause it to tune to the frequency selected. Bearing information of the received signal is sent to the bearing indicator for display. Also aural intelligence is presented to the aircraft intercom system.
Manual includes operation instructions, theory of operation, troubleshooting procedures, schematics and parts list.
This came from a Rockwell Collins radio test equipment manual library long term storage.
